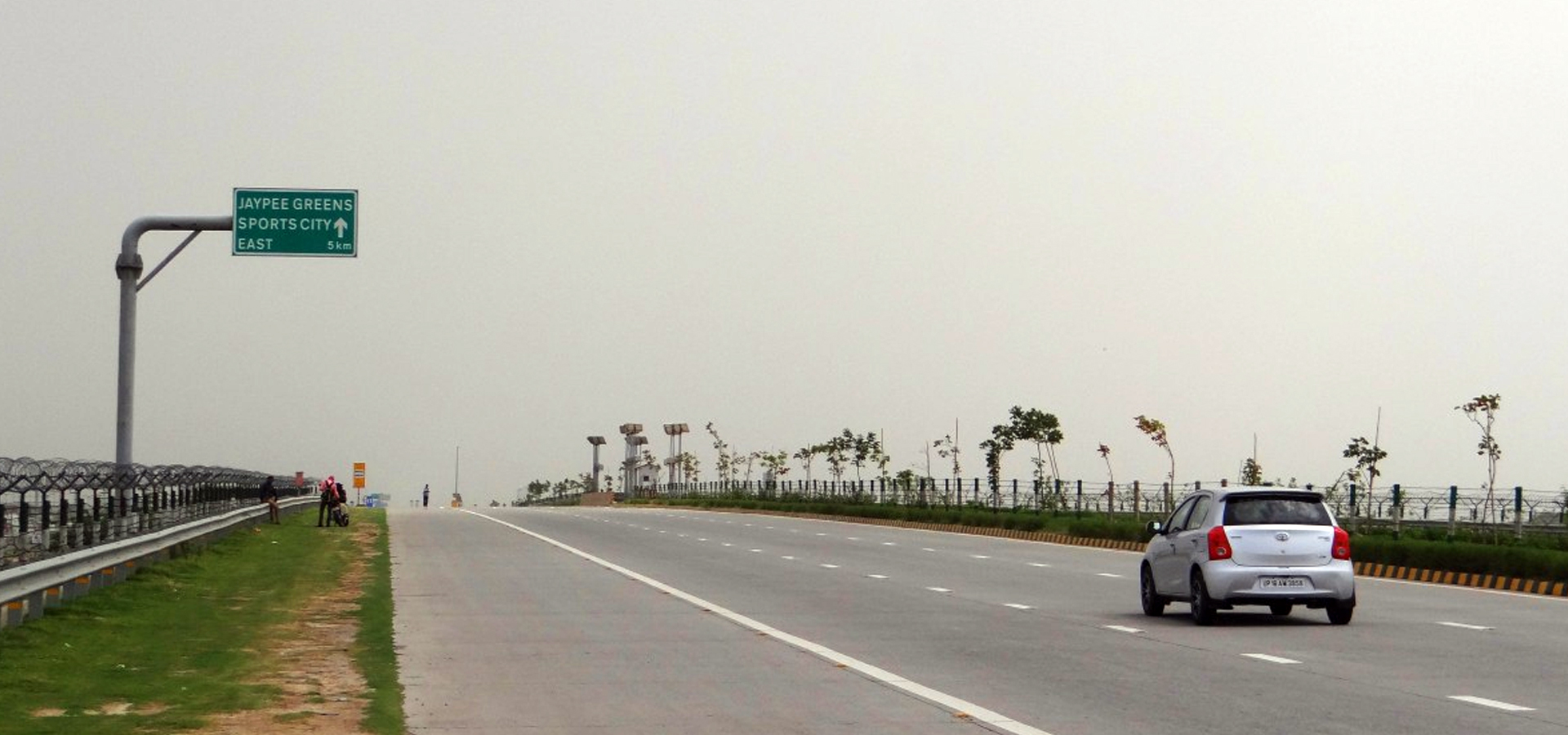

Yamuna Expressway stretching 165 kms. connects international tourist destinations of Delhi and Agra. Yamuna Expressway, a 6-lane (extendable to 8 lane) access controlled Expressway, is planned to have 5 LFDs (Land of concessionaire) with facilities of 4 Toll Plazas, and 6 Interchanges along the entire length.
18The Govt. of Uttar Pradesh has formed an autonomous body and created a new authority namely the Yamuna Expressway Authority.
Know MoreThe Govt. of Uttar Pradesh has formed an autonomous body and created a new authority namely the Yamuna Expressway Authority.
Know MoreThe Yamuna Expressway (Erst while Taj Expressway) Project is conceived with the idea to not only reduce the travel time between New Delhi and Agra but also to open up avenue for Industrial and Urban development of the region and provide the base for convergence to tourism and other allied industries.
165 km
Length100 mtrs
Right of Way6 mtrs
Median Width120 kmph
Design Speed6
Interchanges70
Vehicular Underpasses4
Main Toll Plazas41
Minor Bridges
| Type | Concrete Paved |
|---|---|
| Lenght | 165.537 Km |
| Right of Way (ROW) | 100 m |
| Number of Lanes | 6 Lanes (extendable to 8) |
| Lane Width | 3.75m each |
| Top Width of Embankment | 47.60 Mtr. (including 6.0 Mtr. wide Median) |
| Height of Embankment | 11.50 to 7.0 Mtr. (varying) |
| Interchange | 6 Nos. |
|---|---|
| Ramp Plaza | 8 Nos |
| Vehicular Underpass | 70 Nos |
| Minor Bridge | 41 Nos |
| Cart Track Crossing | 76 Nos |

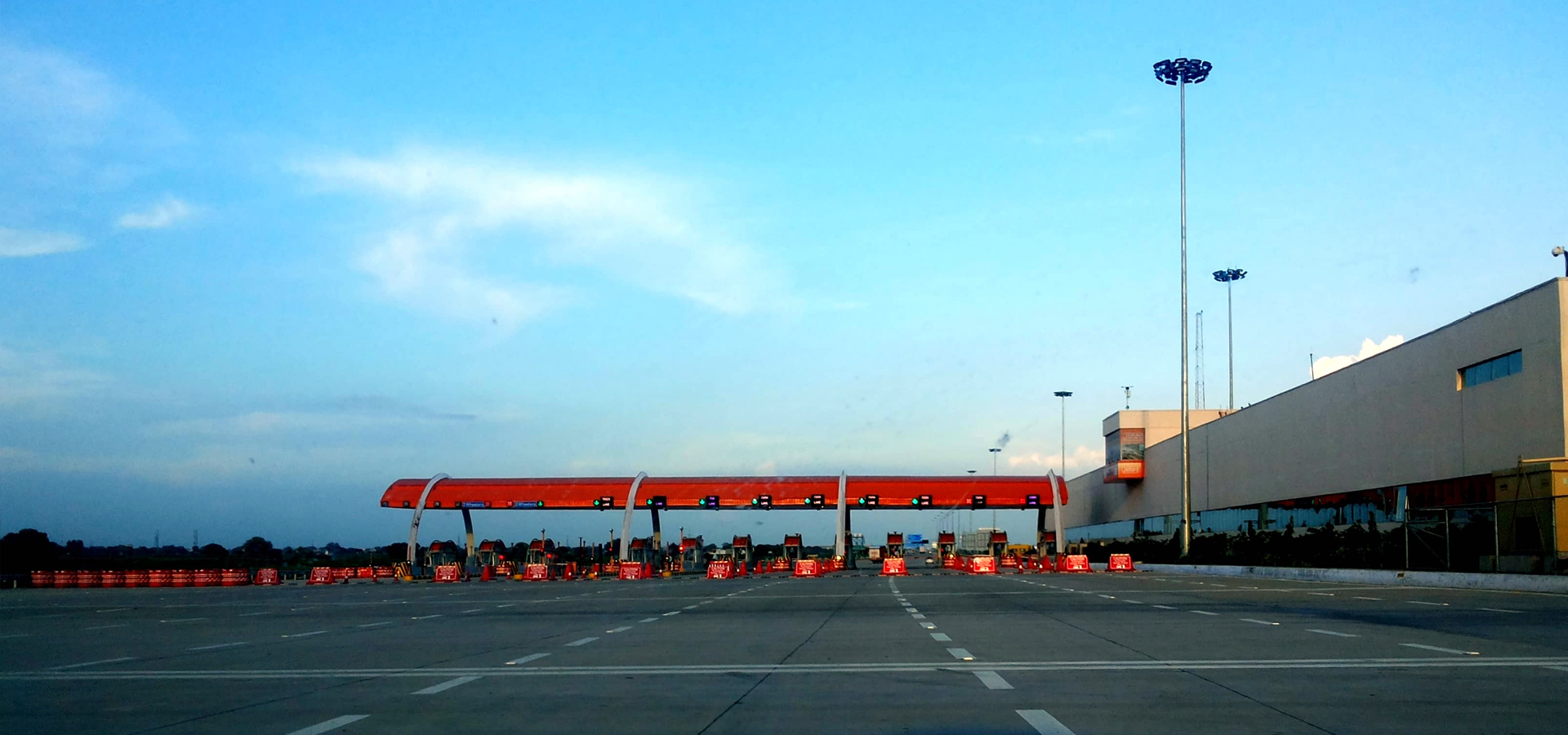

| Main Toll Plaza | 3 Nos (32 lanes at each location, extendable up to 52 lanes) |
| Culvert | 183 Nos |
| Cement | 12.0 Lac Tonnes |
|---|---|
| Steel | 1.30 Lac Tonnes |
| Stone Aggregate | 130 Lac Tonnes |
| Admixtures | 12,500 tonnes |
| Bitumen | 7,500 tonnes |
| Shrubs Planted | 5 Lac (approx.) |
|---|---|
| Trees Planted | 5 Lac (approx.) |
| Grass Turfing | 62.70 Lac Sq.Mtr. |
| Earthwork including Fly Ash | 411.1 Lac Cum |
|---|---|
| Concrete | 33.2 Lac Cum |
